DL Series Screw Sludge Dehydrator / screw Type Sludge dewatering Machina

PREV：Gdy Series balteum caeno concentration et dewatering apparatus NEXT：FTE Series Rotary tympanum stercora dewatering machina

Opus principium:

Sludge dewatering machina ex pluribus annulos, an activo circulum et volutpat filter, quod possit perficere sidera incrassatus et torcular dewatering. In concentration pars, filtrate cito obit et non cuneos per relativum motus inter fixum et movetur, in dewatering pars, in TRADUCOR facit volumen horrea et enhances internum pressura laminam, nove exemplar et traditional exemplar. Et provectus solidum-liquida separationem et sui Purgato technology et adducere novus temporibus.

Sludge dewatering principle:

The interval in the thickening part of the sludge dehydrator is 0.5mm, and the dewatering part is 0.3mm and 0.15mm, the screw pitch from the thickening part to the dewatering part turns to narrow through the rotating of the screw edge to push up the floating plates which make the space narrow while it goes to outlet. Ita, dewatering unitas generat pressura et altum pressura a pressura laminam, missionem de Sludge Cakes.

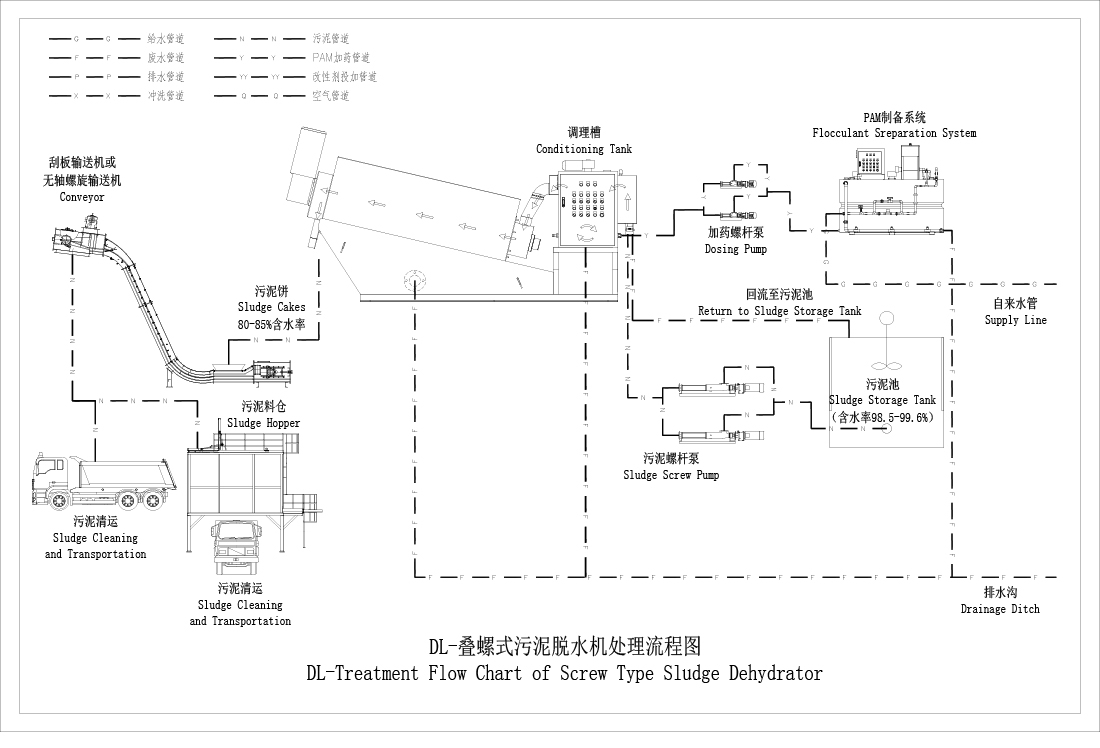

Processus fluxus chart

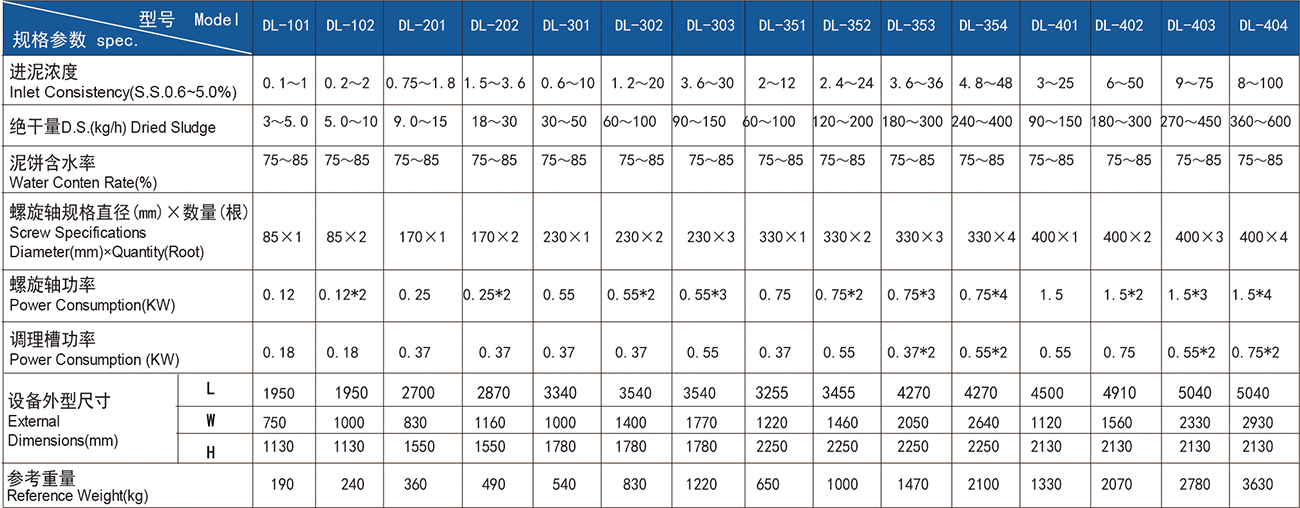

Productum parametri

In comitatu subsidiis ius facere continua improvements. Omnes parametri subiecta ad confirmationem utriusque partibus. Si quis technica quaestiones, placere contactus nobis.

Internus

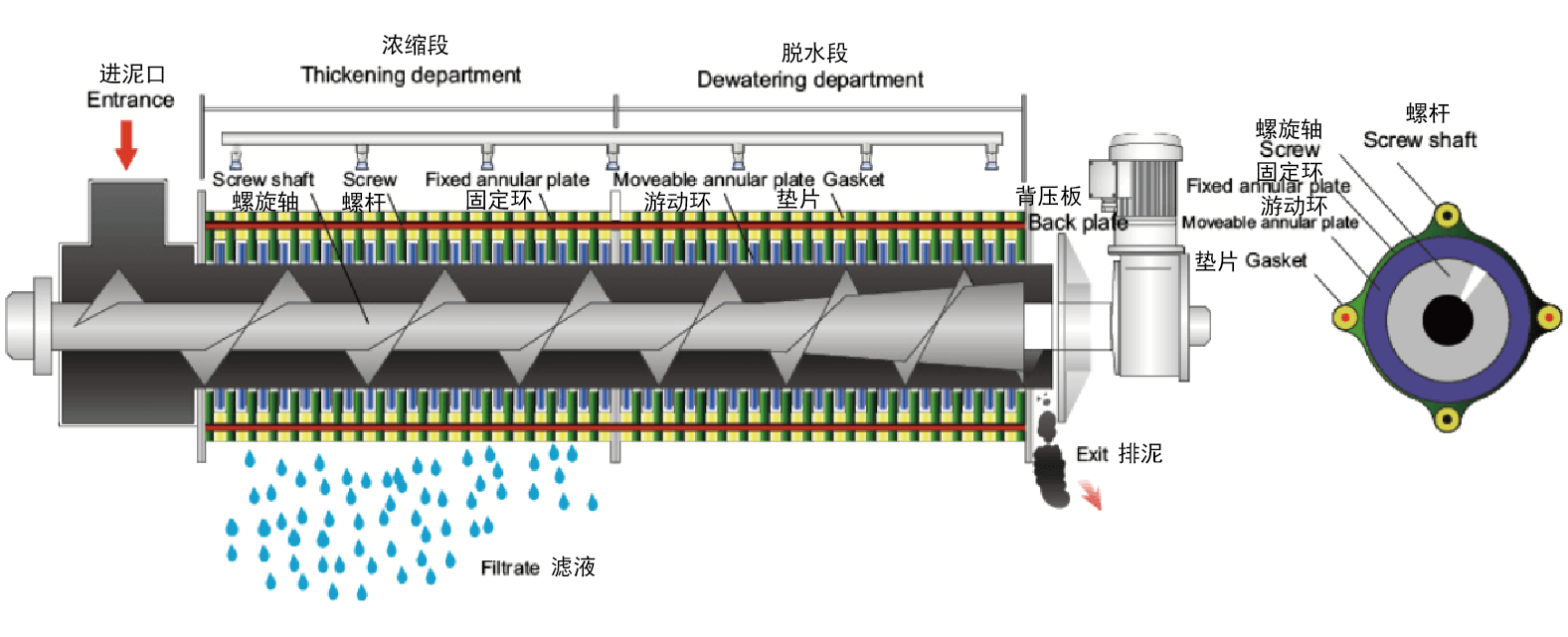

Internum structure

Quam expectationem intra budget.　

Si vos have ullus questions, inquisitione, aut de, nostrae peritissimus et dedicated quadrigis SFC doctorum semper ad arbitrium, paratus ad offer promptum et reliable auxilium et auxilium.
